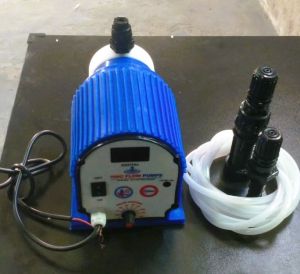

Chemical Dosing Pumps

 CONSTRUCTION MATERIAL- 1- MINI FLOW PUMPS MODEL -DAT-6 LPH, 2- BODY-PP GLASS FILLED, HEAD- P .P.  ,  3-HOSING  - MILD STEEL.

4- DIAPHRAGM-  P .T.F.E.,  5- NRV BALL-- P. T. F.E,  6-NON RETURN VALVE - P.P.  7-SUCTION & DISCHARGE TUBING- P.P. ,

ELECTRICAL SPECIFICATIONS

1-SUPPLY VOLTAGE - 230VAC 50HZ (+OR-20%) ,    2- piping  -6/8mm, 3-  MAM. FLOW RATE -4/6/10/15/20/25 LPH WITH OPEN TANK,   4-EMPTY FLUID SENSE - SV DC FOR MAGNETIC SENSOR ,     5-  P.C.B.-- GLASS EPOXY,   6- FLOW RATE WITH 6KG.CM2.-- 0-6LPH (LITER PER HOUR)

        1MINUTE PULSE= 135 PULSE, 1 HOUR= 8100 PULSE, 1PULSE =0.74 ML,

  1-  WARRANTY 12 MONTH,,        2-CUSTOMER WILL HAVE TO KEEP THIS PAPER AND BILL WITH HIM FOR WARRANTY OF THE PUMP.      3-   WARRANTY WILL BE START FROM THE  DATE WHICH IS MENTION ON THE PURCHASE BILL.
